S&A CW-5000/CW-5200 compact water chillers CE,RoHS and REACH
-
-
-
-

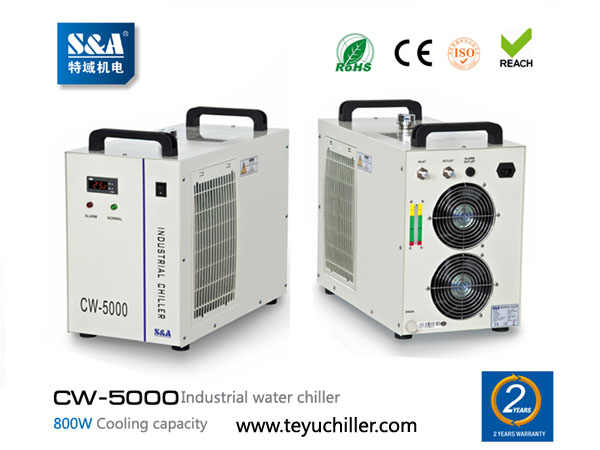

- S&A CW-5000 is refrigeration type industrial water chiller of 800W cooling capacity and the temperature control in ±0.3℃ precision. It’s mainly used to have the heat generated during the laser device working that gone through the refrigerating cycle in compressor refrigeration system and eventually transferred to the air. The water temperature is able to be adjusted. CW-5000 video: http://www.teyuchiller.com/Article/02SAwaterchillerCW5000_1.html CW-5000 water chiller parameter: Voltage:110V-220V; Frequency: 50/60Hz; Refrigerant: R-134a Pump power: 0.03KW/0.051KW/0.1KW; Tank capacity:6L Max. lift:10M-25M; Max. flow: 10L/min- 16L/min N.W: 24Kgs; G.W: 27Kgs; Dimension : 58 X 29 X 47 cm (L X W X H); Packing dimension: 70 X 43 X 58 cm (L X W X H) CW-5000 specification: CW-5000AG: applied to cool a single 80W CO2 laser tube (emitting rate higher than 60%); CW-5000AH: applied to cool a single 5KW spindle or welding equipment; CW-5000AI : applied to cool a single 5W-10W solid-state laser.
-
